Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch

Looking for high-quality stainless steel wire grate suppliers in China? Check out Mingwei Stainless Steel for durable, no-stagnant water steel grating. Our factory provides 20-23.85mm bearing bar pitch.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Surface Options
  • Product Inventory
  • Applications
  • Production Process
Overview

Basic Info.

Model NO.
Galvanized Steel Grating
Material
Carbon Steel
Model No.
Galvanized Steel Grating
Surface Treatment
Hot DIP Galvanized, Polishing, Painted
Chemical Composition
Fe, C, Si, Mn, S, P
Stainless Grating Material
Stainless Steel Ss201, SS304, SS316
Galvanized Grating Material
Steel Q235B, S235, S275jr, A36
Galvanization Standard
Cn: GB/T13912, Us: ASTM (A123), UK: BS729
Steel Grating Standards
Yb/T4001-1998, ANSI/Naamm (Mbg 531-88), BS4592-198
Material Standard
Low Carbon Steel (Cn: Q235, Us: A36, UK: 43A)
Flat Bar Type
Plain, Serrated (Tooth-Like), I Bar (I Section)
Cross Bar
5X5, 6X6, 8X8mm (Twisted Bar or Round Bar)
Bearing Bar Pitch
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm
Cross Bar Shape
Round, Twisted, I Bar Shape
Cross Bar Pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm
Bearing Bar
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3
Transport Package
Steel Strips or Pallets
Specification
Customize
Trademark
MINGWEI
Origin
Heibei, China
HS Code
73089000
Production Capacity
50000 PCS/Month

Product Description

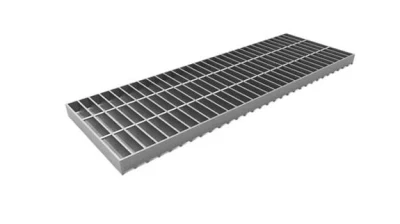

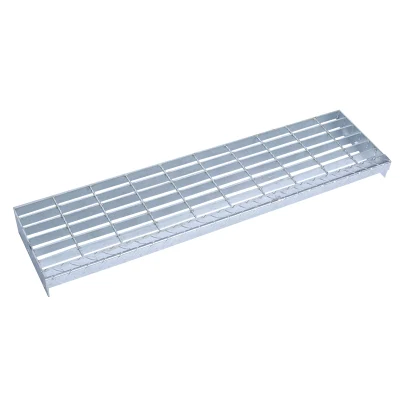

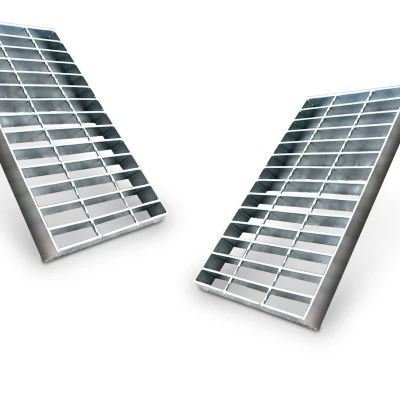

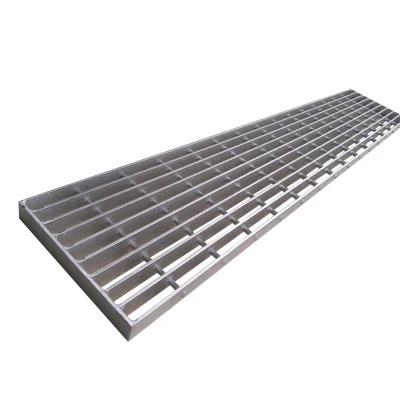

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch Steel grating main kinds: plug-grating, stair stepping board, ditch cover, steel ladders, working platforms, building ceilings, etc.

Material: hot dipped galvanized steel grating, stainless steel grating.

The steel grating has the characteristics of ventilation, lighting, heat dissipation, non-slip, explosion-proof, and so on.

Mild carbon steel provides an economical, high strength for use in most industrial and commercial applications. And hot dipped
galvanized surface treatment supplies excellent corrosion resistance performance for durability.


Steel Grating Specification
Load Bearing Flat Bar Size Thickness≥3mm, depth 19mm
  19x3,19x5,20x3,20x5,25x3,25x4,25x4.5,25x4.7,25x5........40x6,40x8
Pitch of Load bearding flat bars (mm) 12.5,15,20,30,30.6,32.5,34,34.8,35.3,40,60,80....
Pitch of cross bars(mm) 38.1,50,50.8,70,75,80,99,100,101.6,102......


Steel Gratiing Standard


Country Steel grating standard steel material standard Hot galbanizing standard
China YB/T 4001-1998 GB 700-88 GB/T 13912-2002
USA ANSI/NAAMM(MBG531-88) ASTM(A36) ASTM(A123)
England BS 4592-1987 BS 4360(43A) BS 729
Australia AS 1657-1992 AS 3679 AS 1650


Steel Grating More Detailed Information


No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc
    I bar:
25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
    US standard
1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'',
1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'', etc
2 Bearing Bar Pitch 12.5, 15,  20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,
40, 41.25, 60, 80mm etc
    US standard
19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Twisted Cross Bar Pitch  38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2''&4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400
    Mild steel & Low carbon steel, etc
5 Surface Treatment  Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
Product Description

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch

Surface Options

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch

Product Inventory

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch

Applications

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch

Production Process

Mingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar PitchMingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar PitchMingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar PitchMingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar PitchMingwei Stainless Steel No Stagnant Water Stainless Steel Wire Grate Suppliers High-Quality Steps Steel Grating China 20 23.85mm Bearing Bar Pitch
